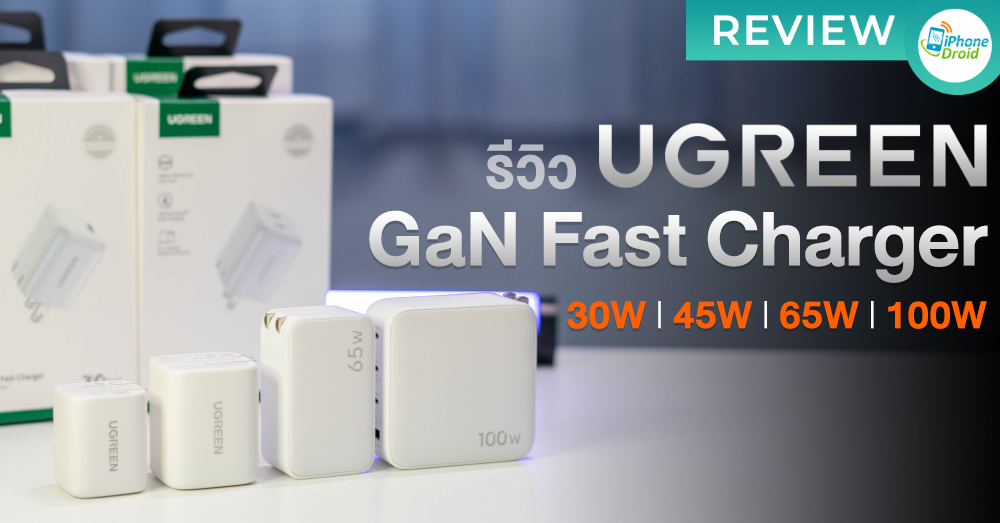

Review of UGREEN GaN Fast Charger, charging head, power 30W l 45W l 65W l 100W

by

Review of UGREEN GaN Fast Charger in full, up to 4 models this time. It comes in both power models of 30W, 45W, 65W and 100W, each of which has different sizes and uses in each port. But the matter of design came in a clean way, how will all of this be? iphone-droid.net I will take you to see.

UGREEN 30W GaN Fast Charger specification summary

  • Input : 100-240V~ 50-60Hz 800mA Max
  • Output : Max 30.0W
  • USB Type-C Output：5.0V=3.0A / 9.0V=3.0A / 12.0V=2.5A / 15.0V=2.0A / 20.0V=1.5A / 3.3-11.0V=2.7A

UGREEN 45W GaN Fast Charger specification summary

  • Input : 100-240V~ 50-60Hz 1.2A Max
  • Output : Max 45.0W
  • USB Type-C1/C2 Output：5.0V=3.0A / 9.0V=3.0A / 12.0V=3.0A / 15.0V=3.0A / 20.0V=2.25A / 3.3-11.0V=4.05A

UGREEN 65W GaN Fast Charger specification summary

  • Input : 100-240V~ 50-60Hz 1.8A Max
  • Output : Max 65.0W
  • USB Type-C1/C2 Output：5.0V=3.0A / 9.0V=3.0A / 12.0V=3.0A / 15.0V=3.0A / 20.0V=3.25A / 3.3-21.0V=3.0A (Max 65W)
  • USB Type-A Output：4.5V=5.0A / 5.0V=4.5A / 5.0V=3.0A / 9.0V=2.0A / 12.0V=1.5A (Max 22.5W)

UGREEN 100W GaN Fast Charger specification summary

  • Input : 100-240V~ 50-60Hz 2.3A Max
  • Output : Max 100.0W
  • USB Type-C1/C2 Output：5.0V=3.0A / 9.0V=3.0A / 12.0V=3.0A / 15.0V=3.0A / 20.0V=5.0A / 3.3-21.0V=3.0A (Max 100W)
  • USB Type-C3 Output：5.0V=3.0A / 9.0V=2.5A / 12.0V=1.88A / 3.3-5.9V=3.0A / 3.3-11.0V=2.0A (Max 22.5W)
  • USB Type-A Output：4.5V=5.0A / 5.0V=4.5A / 5.0V=3.0A / 9.0V=2.0A / 12.0V=1.5A (Max 22.5W)

Equipment inside the box

For the equipment inside the box of the UGREEN GaN Fast Charger of the 30W, 45W and 65W power models, there will be only a charging head. But in the largest model, such as 100W power, the user manual will also be included because of having multiple ports and having separate power.

Clean white design Small size based on GaN technology and very portable.

All four UGREEN GaN Fast Charger models come in a similar overall design. Comes in a white matte finish. Get clean beauty Does not leave oily stains or fingerprints that will reduce the beauty.

As for the size of the UGREEN GaN Fast Charger, all 4 models are well made, with the 30W model coming in a very small size at 3.25 x 3.14 x 3.96 cm and light at only 81 grams. Carry it in a small bag. or trouser pockets.

While in the 45W model, it increases in size to 3.98 x 3.98 x 4.90 cm and weighs only 98 grams, it can be seen that the size is not too different from the 30W model, allowing it to be carried comfortably. same

In the 65W model, it measures 6.57 x 3.98 x 3.09 cm, which in this model has a prominent charger length. and the weight will go up to 129 grams, which is still considered light in the charging head of this size

And in the big senior, like the power of 100W, it has a size of 6.85 x 3.3 x 6.85 cm, weighs 235 grams, which if you look at the size, you can see that the design is clearly square. But the thickness will still be close to other models, anyone who uses a lot of devices Carrying this model is definitely complete.

The relatively compact size and suitable for each power is because all models use GaN technology to assist in production. This allows the internal components to save a lot of space. but good heat dissipation and excellent power control as well

And what is indispensable in this era of charging heads is folding charging heads. to make it easier to carry And it still hasn’t been damaged by other devices as well.

What are the ports provided? and how to share the power supply?

As for the ports provided in each model, it will differ for each power. This gives us the option to buy according to the suitability of each person. Anyone who only uses a smartphone can choose UGREEN 30W GaN Fast Charger as well. because there is only one USB-C port for a full channel

Or anyone using more tablets may look at it as a UGREEN 45W GaN Fast Charger that will add a second USB-C port, which if using only 1 channel, will run up to 45W, but if using 2 channels at the same time It will run at 20W and 25W, which device gets more power will depend on the specification of that device.

Later, in the UGREEN 65W GaN Fast Charger model, there will be 2 USB-C ports and another USB-A port for charging. MacBook right away or anyone who charges headphones using a USB-A port, if using a single channel, it can be charged at 22.5W.

Charge 2 ports simultaneously

  • USB-C1 : 45W/ USB-C2 : 20W
  • USB-C1 : 45W/ USB-A : 18W
  • USB-C2 : 8.5W / USB-A : 8.5W

Charge 3 ports simultaneously

  • USB-C1 : 45W/ USB-C2 : 8.5W / USB-A : 8.5W

And in the UGREEN 100W GaN Fast Charger model, you get a maximum power of 100W if you use only one USB-C1 or USB-C2 port. If you use only one USB-C3 or USB-A channel, you get a maximum power of 22.5W, but If using 2 channels or more, it will receive different power as follows.

Charge 2 ports simultaneously

  • USB-C1 : 65W / USB-C2 : 30W
  • USB-C1 : 65W / USB-C3 : 22.5W
  • USB-C1 : 65W / USB-A : 22.5W
  • USB-C2 : 65W / USB-C3 : 22.5W
  • USB-C2 : 65W / USB-A : 22.5W
  • USB-C3 : 10.5W / USB-A : 10.5W

Charge 3 ports simultaneously

  • USB-C1 : 45W/ USB-C2 : 30W / USB-C3 : 22.5W
  • USB-C1 : 45W/ USB-C3 : 30W / USB-A : 22.5W
  • USB-C2 : 65W / USB-C3 : 10.5W / USB-A : 10.5W
  • USB-C1 : 65W / USB-C3 : 10.5W / USB-A : 10.5W

and if charging 4 ports at the same time, will get at USB-C1 : 45W/ USB-C2 : 30W / USB-C3 : 10.5W / USB-A : 10.5W

Test charging devices

iPhone 14 charging test

In the charging test with the UGREEN charger in the initial model at 30W, it can definitely charge the iPhone 14 at full capacity. With the device supporting fast charging at 20W, which meets Apple’s standards we try to charge from about 10% to 60% in about 30 minutes.

Samsung Galaxy Note20 Ultra 5G charging test

As for the Android side, like the Galaxy Note20 Ultra 5G, which tests all charging heads and has enough power at 25W, it will say “Ultra Quick Charge”, which is also the fastest as the device can accept.

13-inch MacBook Pro charging test

And finally, to charge a 13-inch MacBook Pro that supports 61W charging, it can be used with either the single-port UGREEN 65W GaN Fast Charger or the UGREEN 100W GaN Fast Charger. which the charging speed is at a normal level Not slower than the charger from Apple itself.

Supports many devices including iOS l MacBook l Android l Notebook

For charging head UGREEN GaN Fast Charger, all 4 power supports charging both iOS and Android smartphones in its entirety. Whether it’s an old model or a new model, including a 65W or 100W UGREEN GaN Fast Charger that is compatible with MacBook Air, MacBook Pro, Microsoft Surface or various notebooks. That supports USB-C or Thunderbolt ports.

usage summary

Anyone looking for a charger to use with various devices, the UGREEN GaN Fast Charge charger is another option that works very well and is full of performance, easy to carry, who will use any power, whether it’s 30W. , 45W, 65W or 100W, depending on the use of each person Anyone who only uses a smartphone can choose to be a 30W model only, or anyone who has a tablet can also move up, but anyone with a MacBook or notebook can choose a high power of 65W or 100W.

price and distribution channel

For UGREEN GaN Fast Charger, each model has an available price and sales channels through Shopee as follows:

UGREEN 30W GaN Fast Charger

  • white : 599 baht
  • light gray : 499 baht

You can order at > https://shope.ee/AK4z02xrVj

UGREEN 45W GaN Fast Charger

  • white : 899 baht
  • grey : 950 baht

You can order at > https://shope.ee/4Knlr5NLlP

UGREEN 65W GaN Fast Charger

  • price 1,099 baht

You can order at > https://shope.ee/7A7xEMbU3X

UGREEN 100W GaN Fast Charger

  • price 1,890 baht

You can order at > https://shope.ee/40AvSaUw0N
