ESP32-Powered 32×32 LED Matrix with Rotary Encoder Control

ESP32 projects continue to push the boundaries of what’s possible with microcontrollers, ranging from practical smart device enhancements to innovative gadgets. One recent project, showcased on the ESP32 subreddit, demonstrates a particularly compelling combination of hardware and software: a 32×32 LED matrix built from four MAX7219 displays, controlled by an ESP32 and enhanced with KY-040 rotary encoders.

Building the 32×32 LED Matrix

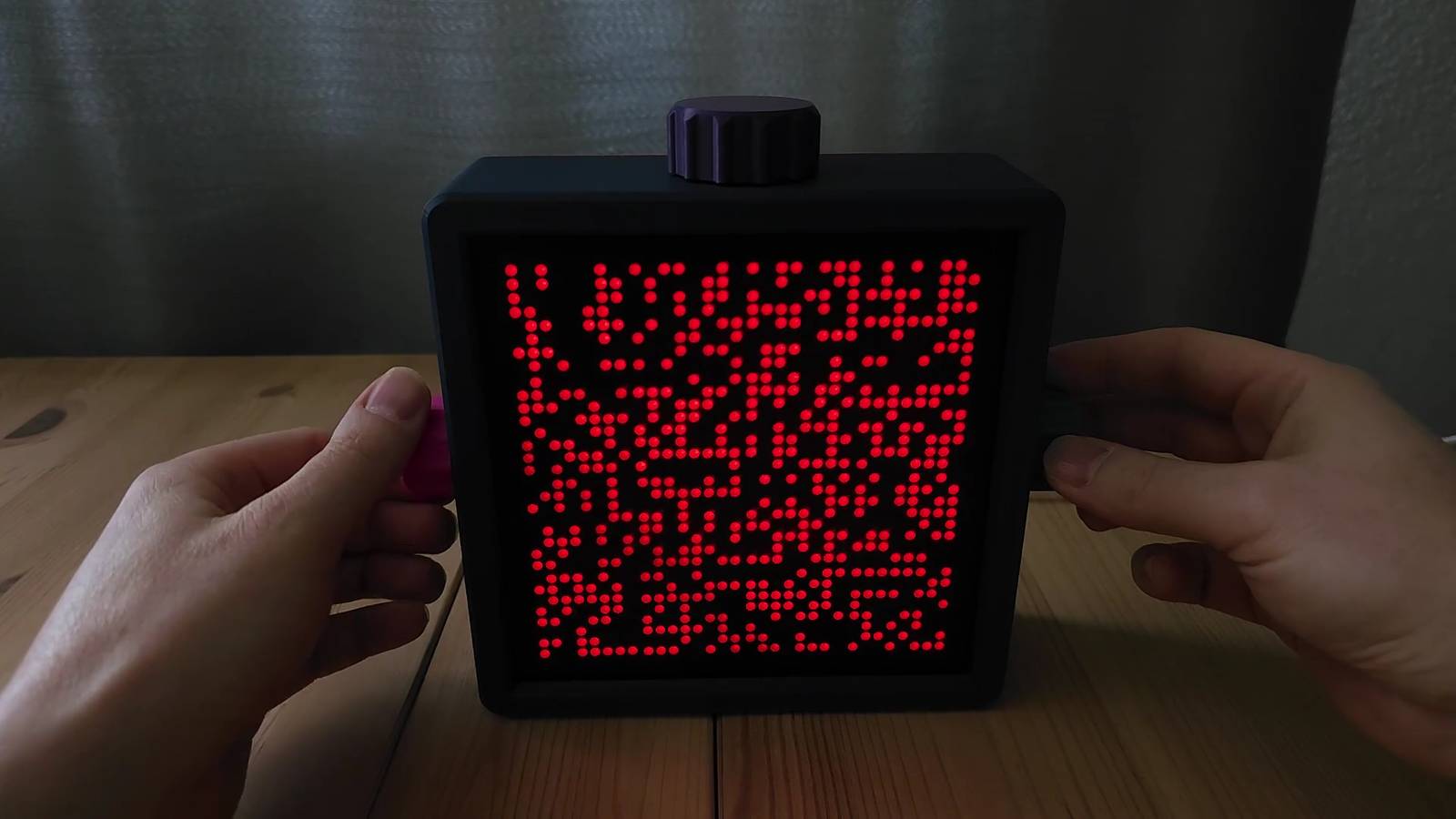

The project creator, Akira2007, combined four MAX7219 LED displays, each with 8×32 LEDs, to create a larger, seamless 32×32 matrix. The MAX7219 modules were sourced from AliExpress. Achieving a visually cohesive display required careful coding to ensure proper alignment of the individual displays. The result is a visually striking matrix capable of displaying various patterns and, notably, running the classic game Pong.

Rotary Encoder Integration for Interactive Control

Adding to the project’s appeal, Akira2007 integrated three KY-040 rotary encoders. Initially, these encoders were used to cycle through different display patterns on the matrix. Still, the project evolved to include Pong, where the encoders function as manual controls for the paddles, providing a tactile and engaging gaming experience. The encoders allow for direct interaction with the display, moving beyond simple visual output.

Hardware and Software Components

The project utilizes the following key components:

• ESP32: The central processing unit, handling the logic and control of the displays and encoders.
• MAX7219 Displays (x4): 8×32 LED matrix displays that, when combined, form the 32×32 matrix.
• KY-040 Rotary Encoders (x3): Provide manual control for navigating menus and playing Pong.

A 3D-printed shell encases the project, providing a clean and polished aesthetic.

Beyond Blinking LEDs: The Value of Creative ESP32 Projects

While many ESP32 projects focus on basic functionality, such as blinking LEDs, projects like this 32×32 LED matrix demonstrate the platform’s potential for more complex and engaging applications. These projects showcase creativity and technical skill, contributing to the vibrant ESP32 community and inspiring further innovation.

For those interested in exploring more ESP32 projects, numerous resources are available online, including projects that offer practical utility beyond simple demonstrations.
