TU Delft algorithm bridges rigid bone and flexible tendon engineering
Reported by Engineeringnet, the method tackles a manufacturing hurdle by creating a compact, graduated transition zone that mirrors natural anatomy.
Replicating natural anatomy through metamaterials
Natural tissue shifts from a stiff bone structure to a pliable tendon across a very short distance without sacrificing durability. Replicating this transition has challenged engineers because combining different material architectures usually creates vulnerable fracture points. Plate-shaped metamaterials use continuous surfaces suited for rigid construction and bone cell integration, while rod-shaped metamaterials rely on interconnected bars to mimic softer tissues.
The combining of these two types of metamaterials is a great technical challenge,
researcher Jianxing Yang said. Direct connections produce weak zones that break easily, while a gradual transition stretches the boundary far beyond the compact connections found in nature.
Calculating optimal connection points via software
The TU Delft team built an algorithm to match plate-shaped and rod-shaped structures and calculate optimal connection points. The software aligns the geometries of both architectures and inserts a transition cell combining features from both families. This process replaces abrupt structural boundaries with short, gradual connections.

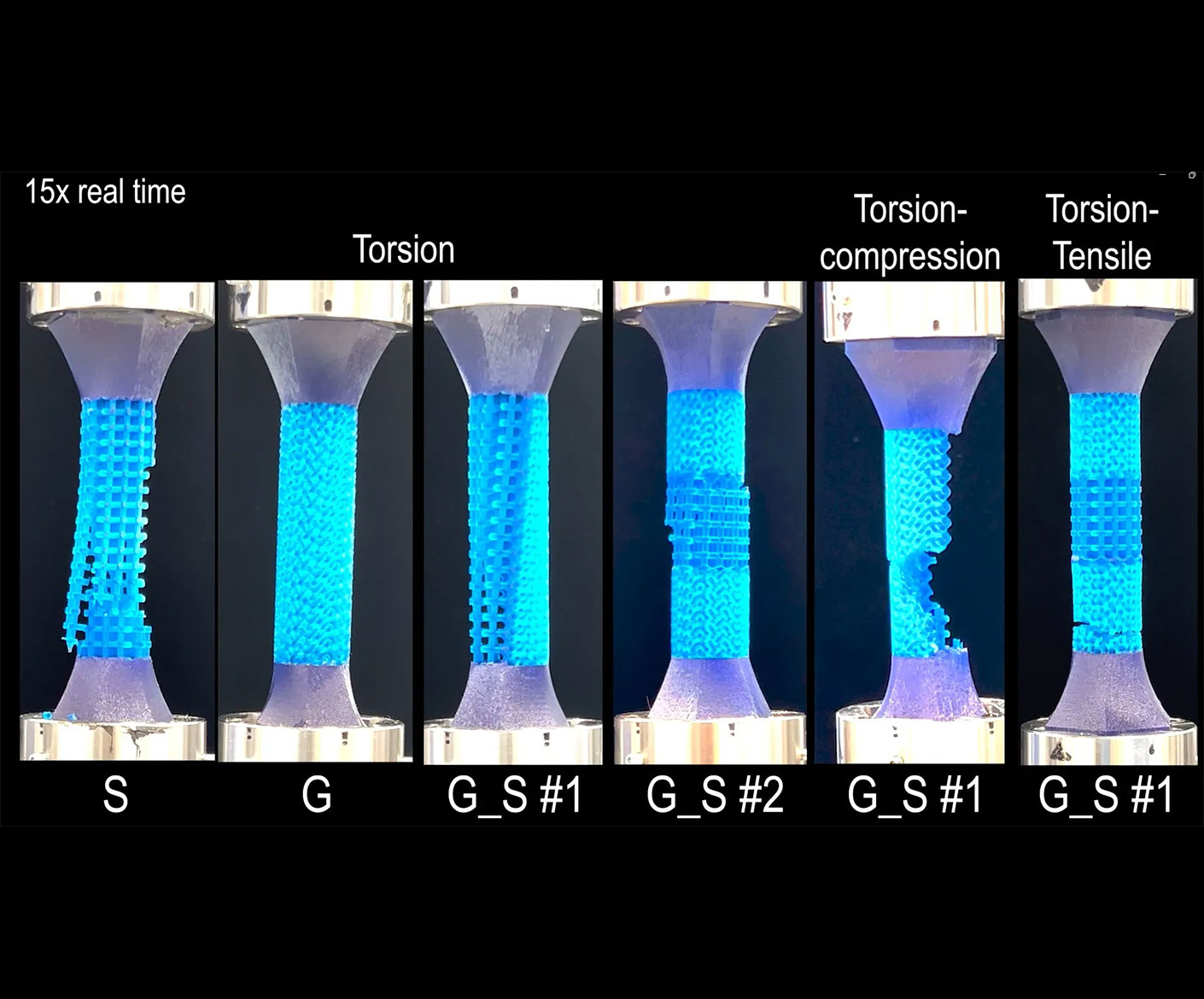

Researchers tested the designs by 3D-printing multiple prototypes and subjecting them to mechanical stress. The experiments confirmed that the calculated transition structures form a reliable bond between the two metamaterial families.
Culturing living cells on hybrid architectures
In follow-up work, the research team is studying how living cells react to these hybrid structures. While scientists previously examined cell behavior on separate plate and rod metamaterials, cellular response to combined architectures remains largely unexplored.
By culturing cells on the newly developed structures, we hope to better understand how geometry influences cell attachment, growth, and differentiation,
professor Amir A. Zadpoor said. The findings aim to determine whether architectural transitions can guide the formation of distinct tissue types, similar to natural bone-tendon junctions.
Medical applications for hybrid metamaterial implants
How the algorithm prevents structural failure
The algorithm calculates precise geometric matches between plate-shaped and rod-shaped metamaterials and inserts a hybrid transition cell that blends the characteristics of both systems, eliminating the weak boundary lines that typically cause breakage under mechanical stress.
Primary medical uses for the new structures
The research opens up new possibilities for designing medical implants and tissue constructs that match the mechanical properties of the human body while actively supporting the biological reaction of the body.
