Engineering the Impossible: The C-5M Super Galaxy’s Rotating Landing Gear

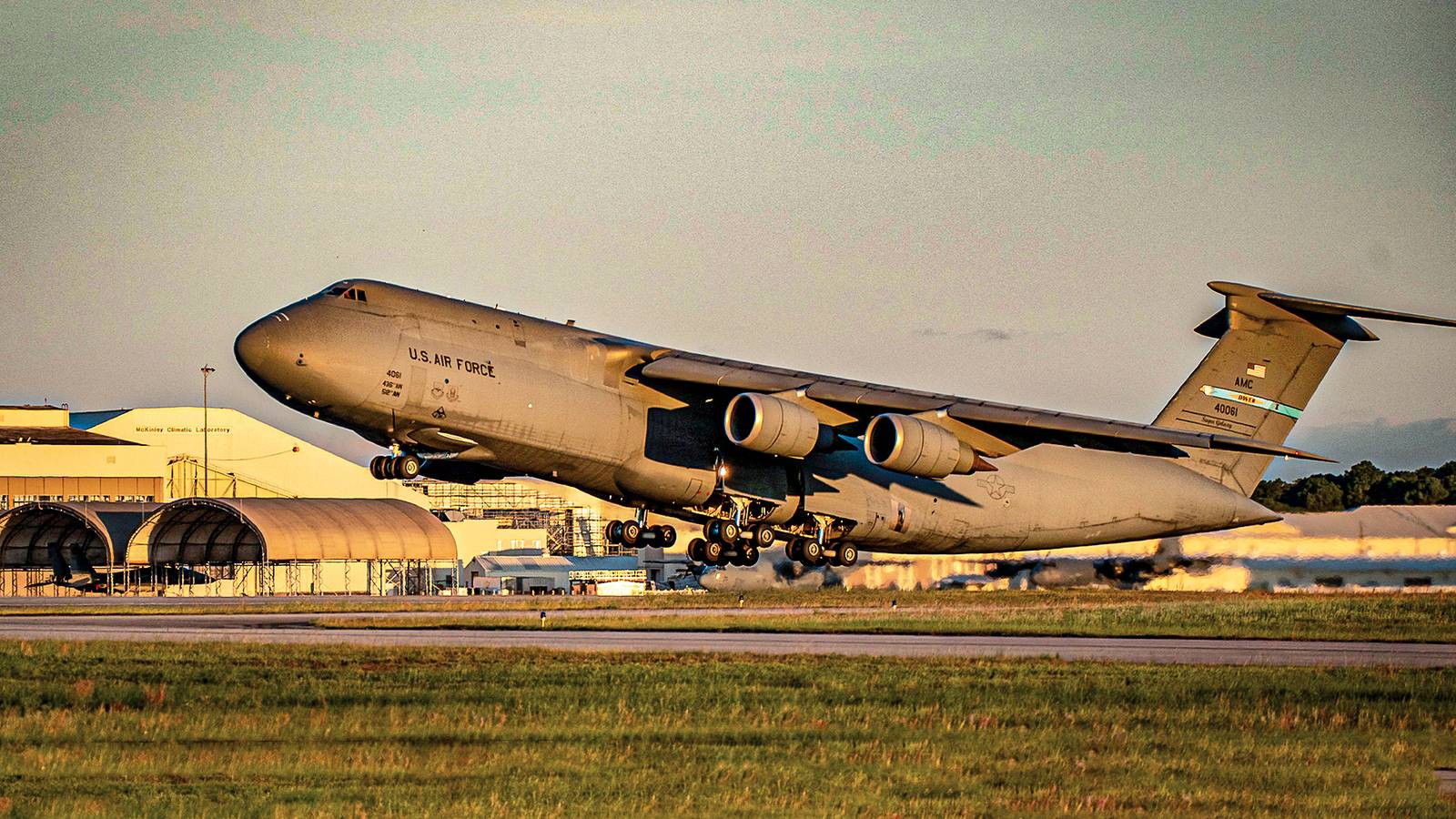

The C-5M Super Galaxy stands as one of the largest military transport aircraft in the U.S. Air Force fleet, designed to move oversized strategic assets and humanitarian supplies across the globe. While its cargo capacity is legendary, one of its most impressive feats of engineering is hidden in its landing gear. To balance the conflicting needs of massive weight distribution and aerodynamic efficiency, the C-5M employs a unique system where its 28 wheels rotate 90 degrees horizontally before retracting into the fuselage.
The Geometry Problem: Why Rotation is Necessary
The primary driver behind this complex mechanical design is a fundamental conflict between geometry and physics. The C-5M utilizes four main landing gear units, each featuring six-wheel bogies. In their standard ground position, these assemblies are too wide to fit into the aircraft’s internal fuselage bays.
Engineers faced a critical dilemma when designing the retraction sequence. They had two theoretical alternatives, both of which were unacceptable:
- Widening the Fuselage: Increasing the width of the aircraft to accommodate the gear would have compromised the aircraft’s aerodynamic profile and reduced fuel efficiency.
- Reducing Wheel Count: Decreasing the number of wheels would have created unacceptable stress concentrations on the airframe, especially when the aircraft is carrying its maximum payload of 840,000 pounds.
The solution was to implement a 90-degree horizontal rotation. By rotating the entire landing gear assembly during the retraction sequence, the gear legs align with the narrow profile of the internal wheel bays, allowing them to retract smoothly without requiring a bulkier fuselage.
Balancing Payload and Aerodynamics
The C-5M’s design highlights the constant trade-off between structural integrity and flight performance. By maintaining a high wheel count, the aircraft can distribute its immense weight across multiple contact points, protecting the airframe and the runways it uses. Simultaneously, the rotating mechanism ensures the aircraft maintains the sleek aerodynamic profile necessary for efficient long-range flight operations.
Key Takeaways: The C-5M Landing Gear System
- Wheel Configuration: The aircraft utilizes a massive 28-wheel system to support heavy payloads.
- Maximum Payload: The gear is designed to handle a maximum payload of 840,000 pounds.
- The Mechanism: Gear assemblies rotate 90 degrees horizontally to fit into narrow fuselage compartments.
- Strategic Benefit: This design preserves cargo capacity for oversized military equipment while maintaining fuel efficiency.
Frequently Asked Questions
Why can’t the wheels just fold up normally?
As of the width of the six-wheel bogies, they are physically too wide for the internal bays. Rotation is the only way to align them with the available space without widening the entire aircraft.
How does this affect the aircraft’s performance?
It allows the C-5M to maintain a narrow, aerodynamic fuselage, which is critical for fuel efficiency and long-range strategic airlift missions.
Summary and Outlook
The C-5M Super Galaxy’s rotating landing gear is a prime example of innovative aerospace engineering solving a spatial constraint. By prioritizing both structural load distribution and aerodynamic efficiency, the U.S. Air Force ensures that this strategic airlifter can deliver massive payloads anywhere in the world without sacrificing flight performance. As military logistics continue to demand the movement of increasingly heavy and oversized equipment, such mechanical adaptations remain vital to global strategic mobility.
