Tiny but Mighty: A DIY Flashlight Built Inside a Resin Case
Table of Contents

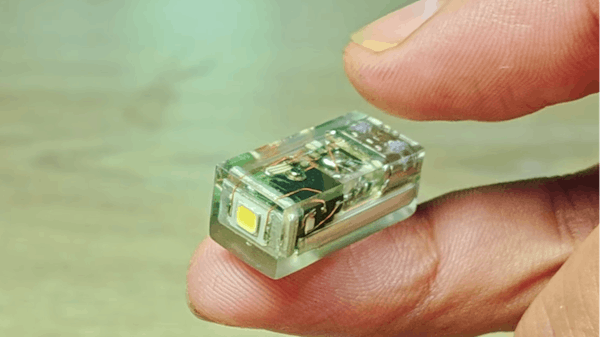

A maker has created an impressively small flashlight using a touch sensor, a white SMD LED, and a durable epoxy resin case. the project demonstrates ingenuity in miniaturization and material usage, resulting in a functional and unique light source. This flashlight is rechargeable via USB-C and activated with a simple touch.
Design and Construction
The flashlight’s core functionality revolves around a touch sensor acting as the power switch for the LED. The maker cleverly integrated the components, connecting the touch sensor directly to the LED. A USB-C port allows for convenient recharging of the internal battery.
The construction process involved several key steps:
- Component Integration: The touch sensor and LED were connected, establishing the basic circuit.
- Mold Readiness: A USB-C port was temporarily filled with clay to provide a secure base for the resin pour.
- Resin Encapsulation: The assembled electronics were then encased in epoxy resin. This provides a robust and waterproof shell.
- Shaping and Finishing: After the resin cured, it was cut, shaped, and sanded to achieve a smooth, comfortable form. The clay was removed from the USB-C port, restoring its functionality.
- Switch Implementation: A small portion of a screw, wired to the touch sensor, protrudes from the resin case, serving as the tactile on/off switch. A simple tap activates the light.
Miniaturization and Potential Improvements
The flashlight’s small size is a notable achievement. However, the maker acknowledges that further miniaturization is possible. The current design features a relatively thick resin layer in some areas, suggesting opportunities to reduce the overall dimensions for those aiming to create the “world’s smallest” flashlight. The original project video Gadget Industry provides further insights into the construction process and potential optimization strategies.
Key Takeaways
* Innovative Switching: Utilizing a touch sensor as a power switch is a clever space-saving solution.
* Durable Housing: Epoxy resin provides a strong,protective,and possibly waterproof enclosure.
* rechargeable Convenience: The USB-C port allows for easy recharging.
* Potential for Further Miniaturization: The design allows for optimization to achieve even smaller sizes.
This project highlights the potential of DIY electronics and resin casting to create functional and aesthetically pleasing gadgets. As technology continues to shrink, we can expect to see even more innovative and compact creations like this one.
