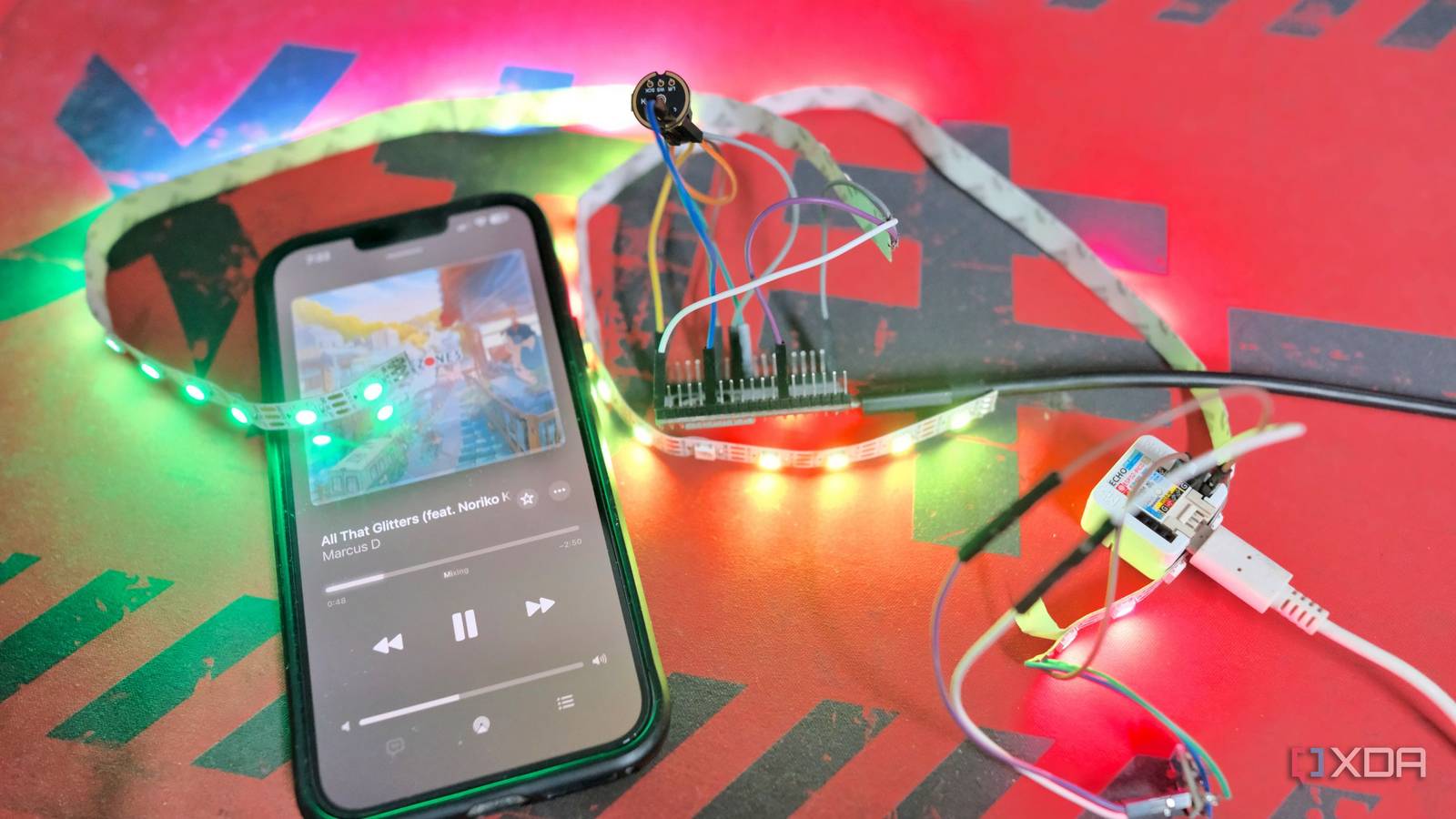

Build Your Own Music-Reactive LED Strip with ESP32

Store-bought RGB LED strips often fall short, offering limited synchronization and requiring subscriptions or dedicated apps. A more compelling solution is a custom-built strip that reacts instantly to music without relying on cloud services. This guide details how to create such a system using an ESP32, a WS2812B LED strip and a microphone, offering a cost-effective and highly customizable alternative to commercial options.

What You’ll Need

The parts list is concise and affordable. You’ll require an ESP32 (NodeMCU-32S) board, a 1-meter strip of 5V WS2812B LEDs, an INMP441 (I2S digital) microphone, and a Raspberry Pi 4 charger (5V/3A output). Jumper cables from previous projects are as well useful.

• ESP32 Board: A basic ESP32 board like the NodeMCU-32S.
• WS2812B LED Strip: A 1-meter strip of 5V WS2812B LEDs.
• Microphone: An INMP441 (I2S digital) microphone is crucial for accurate sound detection.
• Power Supply: A Raspberry Pi 4 charger delivering 5V/3A is sufficient to power up to 60 LEDs.
• Jumper Cables: For connecting the components.

Each WS2812B LED draws approximately 60mA at full white brightness, meaning 30 LEDs require around 1.8A peak. It’s wise to size your power supply with a 20% headroom.

Cost Comparison

Compared to commercial alternatives, this DIY approach offers significant savings. Govee’s music-reactive strip costs around $35 but only reacts to volume levels. The Philips WiZ smart strip is approximately $80 and relies on a phone’s microphone via an app. The Philips HDMI Sync Box costs $145, reading HDMI output for synchronization, while Nanoleaf Lines can reach $179 and still experience sensitivity issues. This build can be completed for under $20.

Wiring It All Together

Wiring requires careful attention. Solder the strip’s DIN (data) pin to the ESP32’s GPIO 4, and connect GND between the ESP32, LEDs, and Pi charger. For power, connect the strip’s 5V and GND directly to the Pi charger’s 5V/3A output – never to the ESP32’s VIN.

Important Power Note: Power the 5V LEDs from the external charger. The ESP32 VIN/3.3V powers only the board itself. WS2812B strips draw high current, so a dedicated 5V PSU is essential. Overloading the ESP32’s VIN can fry its regulators.

Microphone Connections

Connect the INMP441 microphone to the ESP32 using jumper cables. The wiring is as follows:

• VDD to 3.3V (not 5V)
• SD (Serial Data) to GPIO 32
• WS (Word Select) to GPIO 25
• SCK (Serial Clock) to GPIO 26
• GND to GND

Bridging the L/R pin to GND on the microphone’s board simplifies the connection. Double-check all connections, as even a slightly dislodged jumper cable can cause troubleshooting headaches.

Flashing and Configuring WLED

WLED is an open-source firmware ideal for managing addressable LED strips. Recent builds (0.15.x and later) include an AudioReactive module for sound-reactive effects. However, some users have reported microphone detection issues with the official 0.15.x builds.

Consider these options:

• Official 0.15.x: Includes the AudioReactive Usermod, but may require troubleshooting for microphone detection.
• WLED 0.14.4: A stable version that often provides more reliable microphone support.
• MoonModules: A community fork with enhanced audio effects and improved microphone support.

WLED Configuration

After flashing WLED, enable the AudioReactive Usermod and configure the microphone’s GPIO pins in the Usermods interface. Define the GPIO pin connected to the LED strip’s DIN in Config -> LED Preferences. The Info tab is helpful for troubleshooting microphone issues and adjusting squelch and gain settings.

For synchronizing multiple strips, enable Send UDP on the master device and Sync Receive on the others. Save your presets and back up your configuration from Config -> Security & Update -> Backup/Save Configuration. Power-cycle the setup after making significant changes.

WLED should automatically appear in Home Assistant via auto-discovery, eliminating the need for manual configuration.

Performance and Considerations

The INMP441 microphone effectively picks up bass, mids, and treble, offering a more nuanced response than cheaper analog microphones. Ordering a couple of extra INMP441 microphones is recommended, as they are easily damaged during soldering.

This project provides a cost-effective and customizable alternative to commercial music-reactive LED strips. With careful wiring, the right firmware, and a bit of troubleshooting, you can create a stunning visual experience tailored to your preferences.
