Apple iPhone Duo Teardown Reveals Dual Batteries and Modular USB-C Design
Apple’s first foldable smartphone utilizes a dual-battery layout and a modular charging port, according to teardown videos published by REWA Technology and Phone Repair Guru.
The structural demands of the folding screen required splitting internal components into the two halves of the device. REWA Technology and Phone Repair Guru documented two separate internal power cells: a primary 2,962 mAh battery delivering 11.56 Wh, paired with a second 1,921 mAh unit rated at 7.5 Wh. This configuration matches European regulatory energy documentation by totaling 4,883 mAh in combined capacity. Both cells utilize an electrically released adhesive system designed to loosen via controlled electrical current during maintenance. Phone Repair Guru observed that the hardware remained powered on even after technicians disconnected one of the two cells, demonstrating an independent power management architecture.
Logic Board Layout and eSIM Integration

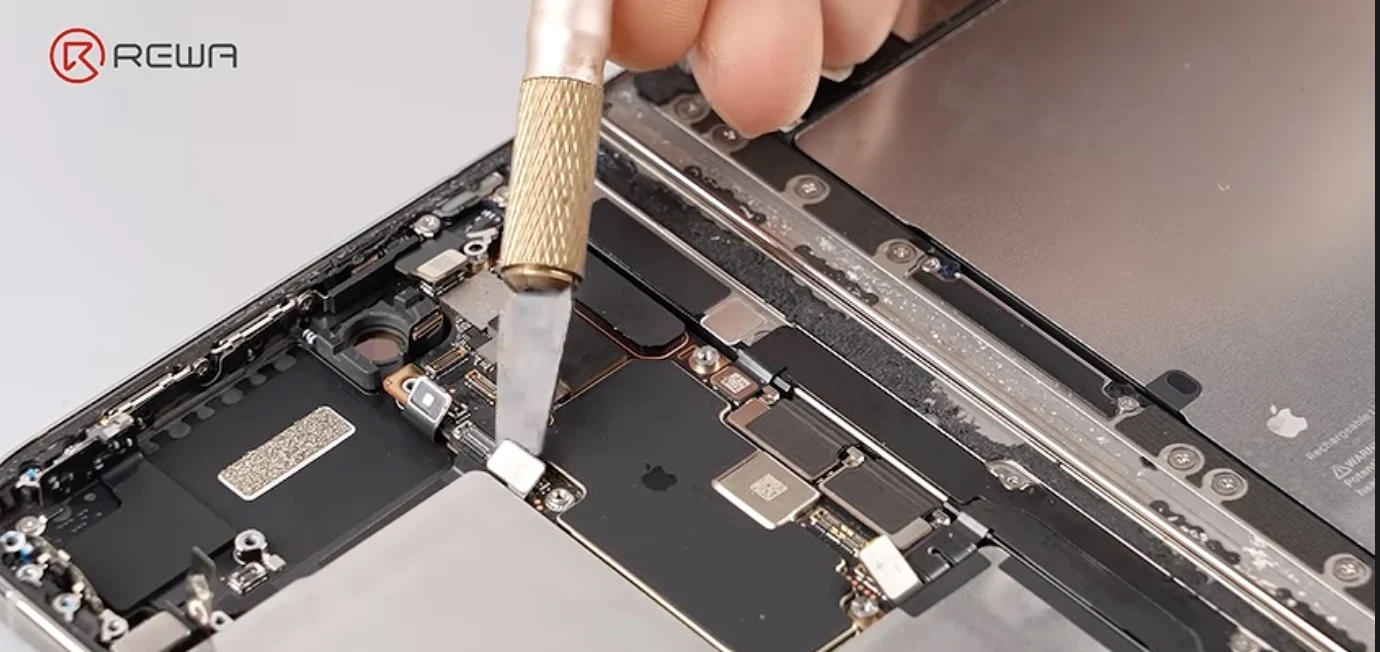

The main logic board houses the A20 Pro processor alongside an Apple-designed C2 cellular modem. Technicians found that the primary circuit board bypasses the stacked sandwich layout seen in standard iPhone models, spreading components across a compact main board and a secondary module linked via a flexible ribbon cable to accommodate the hinge assembly. The physical SIM card slot is entirely absent from the internal layout. The device relies exclusively on eSIM technology across all regional markets to recover internal volume.
USB-C Modularity and Internal Repair Challenges
Repair assessments identified distinct advantages and structural hurdles for technicians servicing the hardware. Phone Repair Guru discovered that the USB-C charging port operates as an independent, modular component that detaches without requiring work on the main logic board. The side-mounted Touch ID sensor integrated into the power button remains removable, though technicians characterized the procedure as highly intricate. Disassembling the internal folding OLED panel required approximately one hour of labor during the teardown process; while the screen remained operational afterward, the surrounding frame sustained damage that necessitates full bezel replacement. Apple has released an official service manual detailing repair workflows for the hardware.
Frequently Asked Questions
What is the total battery capacity of the iPhone Duo?
The device contains a combined capacity of 4,883 mAh split across two distinct internal cells rated at 2,962 mAh and 1,921 mAh respectively.
Does the iPhone Duo accept physical SIM cards?
The smartphone relies entirely on eSIM technology in all markets, omitting a physical SIM tray to save internal space.
Can the charging port be replaced independently?
The USB-C port features a modular design that allows technicians to remove and replace the connector without dismantling the main logic board.
