How NASA’s Boeing 747 Shuttle Carrier Aircraft Transported Space Shuttles—and Why It Was Retired
When the Space Shuttle program ended in 2011, so did the era of NASA’s iconic Boeing 747 Shuttle Carrier Aircraft (SCA). These modified 747s—NASA 905 and NASA 911—were the only aircraft in the world capable of ferrying a space shuttle orbiter on its back. But how did they work? Why was this method chosen over other options? And what happened to these aircraft after retirement?
The Mission: Moving Orbiters Safely and Efficiently
The SCA’s primary role was to transport space shuttles between landing sites (like Edwards Air Force Base in California) and launch pads at Kennedy Space Center in Florida. After a shuttle landed, it couldn’t fly again immediately—it needed to be inspected, refueled and prepared for its next mission. The SCA provided a cost-effective and reliable way to move these massive orbiters (weighing up to 170,000 lbs) without the risk of atmospheric re-entry or additional fuel consumption.

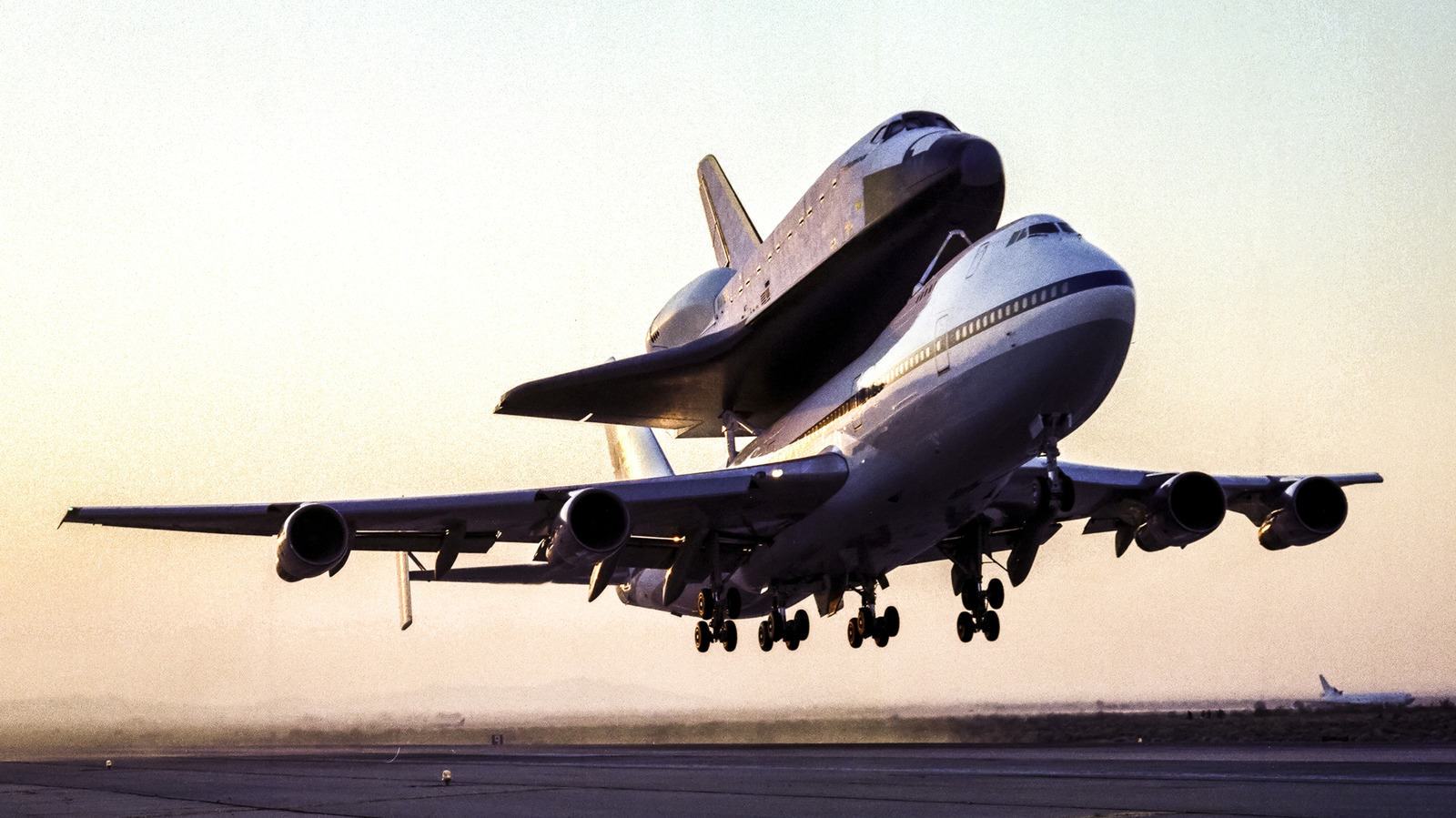

Unlike traditional cargo planes, the SCA didn’t carry the shuttle inside its fuselage. Instead, it used a specialized mounting system to secure the orbiter on top of its fuselage, just behind the cockpit. This design minimized aerodynamic drag and allowed the shuttle to be exposed to the elements during transport.
Aircraft Modifications: Turning a 747 Into a Shuttle Hauler
NASA’s two SCAs were modified Boeing 747-100 aircraft, originally built for commercial passenger service. Key modifications included:
- Structural Reinforcement: The fuselage was strengthened to support the additional weight of a space shuttle (up to 170,000 lbs) on top. The mounting system used four attachment points to secure the orbiter.
- Extended Nose Gear: The landing gear was extended to ensure the shuttle’s nose wheel touched down first during landing, preventing damage to the orbiter’s undercarriage.
- Modified Flight Systems: The aircraft’s avionics were updated to accommodate the shuttle’s weight and center of gravity changes, requiring careful balance adjustments.
- Specialized Paint Scheme: Both SCAs featured NASA’s distinctive livery, with the words “Shuttle Carrier Aircraft” prominently displayed on the fuselage.
Pilots had to account for the shuttle’s weight distribution, which shifted the aircraft’s center of gravity significantly. This required precise flight control adjustments, particularly during takeoff and landing.
How the SCA Transported a Space Shuttle
The process of loading and transporting a space shuttle was a carefully choreographed operation:
- Preparation: The shuttle was towed to a designated mating area at the landing site. A team of engineers and technicians ensured the orbiter was stable and ready for transport.
- Mounting: The SCA approached the shuttle, and a crane lifted the orbiter onto its back. The four attachment points were secured, and the shuttle’s landing gear was retracted to reduce drag.
- Flight: The SCA took off with the shuttle on top, flying at altitudes below 15,000 feet to avoid turbulence. Pilots maintained a steady speed to minimize stress on the orbiter.
- Landing: Upon arrival at the destination (typically Kennedy Space Center), the shuttle was unloaded using the same crane system. The SCA then returned to its base.
Each ferry flight took approximately 2–3 hours, depending on distance and weather conditions. The SCA could carry a shuttle at speeds up to 450 mph, though it typically flew at lower speeds for safety.
The End of an Era: Why the SCAs Were Retired
After the Space Shuttle program concluded in 2011, the SCAs became redundant. NASA’s focus shifted to the International Space Station (ISS) and new launch systems like the Space Launch System (SLS) and commercial crew programs. The SCAs were no longer needed for operational missions, but their legacy lived on in their final flights.
In 2012, NASA 905 made a series of historic ferry flights to deliver retired space shuttles to museums across the U.S.:
- Discovery: Delivered to the Smithsonian National Air and Space Museum in Washington, D.C.
- Enterprise: Transported to the Intrepid Sea, Air & Space Museum in New York.
- Endeavour: Flown to the California Science Center in Los Angeles.
NASA 911, the second SCA, was retired from active service and later donated to the National Museum of the U.S. Air Force in Dayton, Ohio, where it remains on display.
A Lasting Legacy: Lessons for Future Space Transport
The SCAs demonstrated the feasibility of transporting large spacecraft using modified commercial aircraft. While no direct successors exist today, the concept remains relevant as NASA and private companies explore new methods of moving spacecraft between sites. For example:
- SpaceX’s Starship: Elon Musk’s company is developing a fully reusable launch system that could eventually transport spacecraft between Earth and orbit—or even other planets.
- NASA’s X-59: While not a shuttle carrier, NASA’s experimental X-59 Quiet Supersonic Aircraft is pushing the boundaries of aviation technology, potentially influencing future transport methods.
- Commercial Spaceports: As private companies like SpaceX and Blue Origin build reusable rockets, the need for traditional shuttle carriers may diminish further.
Though the SCAs are retired, their engineering innovations continue to inspire discussions about how to move spacecraft more efficiently in the future.
FAQ: Common Questions About NASA’s Shuttle Carrier Aircraft
Why wasn’t the shuttle carried inside the 747?
The shuttle’s wingspan (78 feet) exceeded the width of a 747’s fuselage, making internal transport impossible. Mounting it on top was the only feasible option.
How fast did the SCA fly with a shuttle on top?
The SCA typically flew at speeds between 150–250 mph to ensure stability. Maximum speed was limited to 450 mph for safety.
Could the SCA have been used for other spacecraft?
Theoretically, yes—but the SCA was designed specifically for space shuttles. Other spacecraft, like the International Space Station modules, were too large or heavy for this method.
Are there any plans to revive the SCA concept?
Not currently. With reusable rockets and advanced spaceplanes in development, traditional shuttle carriers are no longer a priority for NASA or commercial spaceflight.
Key Takeaways
- The Boeing 747 Shuttle Carrier Aircraft (SCA) was NASA’s primary method for transporting space shuttles between landing sites and launch pads.
- Modified 747s used a specialized mounting system to carry orbiters on top, requiring structural and flight system upgrades.
- Ferry flights took 2–3 hours and were conducted at lower altitudes for safety.
- After the Space Shuttle program ended, the SCAs were retired and repurposed for museum displays.
- While no direct successors exist, the SCA’s innovations influence modern discussions about spacecraft transport.
