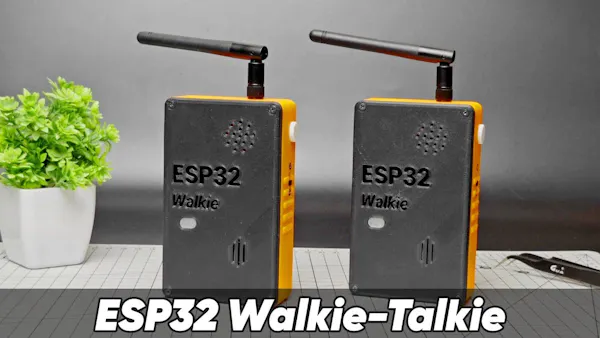

Building DIY Walkie-Talkies: An ESP32 Hardware Guide

Hobbyists can now construct custom long-range communication devices using the ESP32 microcontroller and LoRa (Long Range) radio modules. By combining the Espressif ESP32—a low-cost system-on-a-chip with integrated Wi-Fi and Bluetooth—with LoRa transceivers like the SX1276, makers are creating private, digital voice-transmission networks that operate independently of cellular infrastructure.

How the ESP32 Enables Digital Communication

The ESP32 serves as the central processing unit for DIY walkie-talkies due to its dual-core architecture and high-speed processing capabilities, which are necessary for real-time audio encoding. According to technical documentation from Espressif Systems, the chip handles the digitization of analog voice signals captured via a microphone module, such as the I2S-based INMP441.

Once the audio is digitized, the ESP32 compresses the data and sends it to a LoRa module. Unlike traditional analog walkie-talkies that broadcast over wide FM or AM bands, LoRa uses a spread-spectrum modulation technique. This allows for communication over several kilometers with minimal power consumption, a standard defined by the LoRa Alliance.

Essential Components for Your Build

To assemble a functional unit, builders typically require a specific set of hardware components. The following table outlines the foundational parts needed for a single transceiver node:

Why Use LoRa Instead of Traditional Radio?

Traditional walkie-talkies rely on analog signals that are susceptible to interference and eavesdropping. In contrast, ESP32-based LoRa projects offer a digital, encrypted alternative. Because LoRa operates in the unlicensed ISM (Industrial, Scientific, and Medical) bands—typically 433MHz, 868MHz, or 915MHz depending on the region—users must adhere to local regulations set by bodies like the Federal Communications Commission (FCC) regarding transmission power and duty cycles.

A primary advantage of this DIY approach is the ability to implement custom communication protocols. Developers can program the ESP32 to include features like text-messaging overlays, GPS location sharing, or even group-chat encryption, which are generally unavailable on standard off-the-shelf consumer radios.

Technical Challenges for Builders

Constructing a reliable communication device involves significant firmware development. The primary hurdle is managing audio latency; the ESP32 must encode, transmit, and decode audio streams fast enough to maintain a natural conversation flow. Many developers utilize the Espressif IoT Development Framework (ESP-IDF) to optimize the I2S bus performance and SPI communication between the processor and the LoRa radio.

Additionally, antenna tuning is critical. According to DigiKey’s engineering resources, using an improperly matched antenna can lead to high SWR (Standing Wave Ratio) values, which may damage the LoRa module’s output stage and severely limit transmission range. Builders should ensure their antenna is specifically tuned to the frequency of their regional LoRa module.

Frequently Asked Questions

• Is a license required to use these devices? In many regions, the ISM bands are license-free, provided the device complies with local power output limits. Always check your national telecommunications authority guidelines.
• What is the maximum range? While LoRa can reach over 10km in ideal line-of-sight conditions, urban environments with obstacles typically reduce this to 1–2km.
• Can these talk to standard walkie-talkies? No. These devices use digital LoRa modulation, while standard walkie-talkies use analog FM. They are not interoperable.

As microcontrollers become more powerful, the barrier to entry for building custom radio hardware continues to drop. Future iterations of these projects will likely incorporate more efficient audio codecs, further improving voice clarity and battery life for remote communication applications.
