Advancements in Pneumatic Vibroactuator Technology

Pneumatic vibroactuators are increasingly utilized across diverse scientific and industrial fields, driven by their versatility and efficiency. From pharmaceutical manufacturing and materials processing to advanced robotics and biomedical research, these devices play a critical role in a growing number of applications. This article explores the current state of pneumatic vibroactuator technology, focusing on recent advancements, mathematical modeling, and future trends.

Applications of Pneumatic Vibroactuators

The applications of pneumatic vibrotransducers are remarkably broad. In industrial settings, they are employed for vibrocompaction of pharmaceutical powders [1], room-temperature injection molding of ceramics [1], and as components in polishing machines [1]. Further applications include concrete pipe and column production, direct metal laser deposition, cold spray systems, and continuously vibrating powder bed reactors [1]. In construction and geotechnical engineering, they are used for soil compaction and leveling. They likewise contribute to material handling by controlling membrane fouling and improving the processing of adhesives [1]. Advanced materials benefit from their use in eliminating defects in carbon fiber-reinforced polymer structures. Biomedical applications include calcaneal tendon vibration and muscle proprioception stimulation [1]. Agricultural uses include cotton seeders, and they are even found in reduced-gravity simulators [1].

Recent Advancements in Control Systems

Research has focused on improving the control of pneumatic systems. Studies have explored phase control methods, the integration of piezoelectric actuators to reduce friction and enhance vibration generation, and air suspension systems with adjustable transfer functions [1]. Active and nonlinear control strategies are also being investigated, including active control schemes for pneumatic isolators and nonlinear control methods for asymmetric actuators [1]. Hybrid oscillatory control, combining different transduction mechanisms, is gaining traction.

Two-Degree-of-Freedom Vibroactuator Design

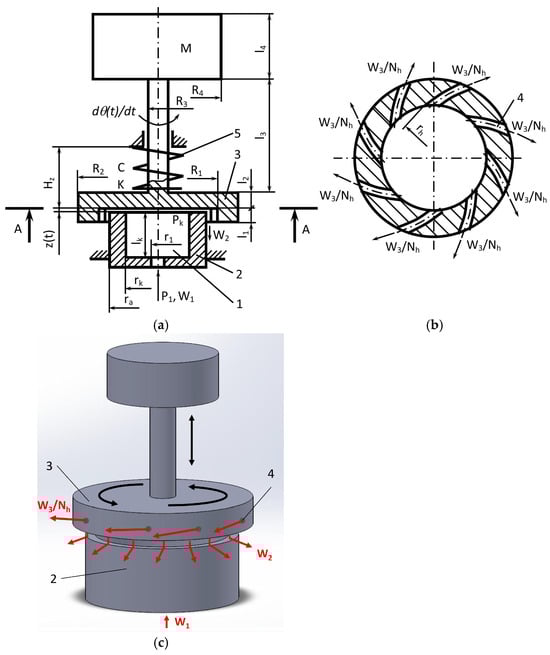

Recent research highlights the development of two-degree-of-freedom (2-DOF) pneumatic vibroactuators. These designs introduce both oscillating and rotational motion within a single mechanical structure, expanding application possibilities. A mathematical model describing the dynamics of such a system involves coupled vertical motion and rotation due to internal pressure and angled air outlet channels [1]. The system’s behavior is described by second-order differential equations, often solved using numerical methods like the Runge-Kutta method.

Mathematical Modeling and Simulation

The mathematical model of a 2-DOF pneumatic vibroactuator, as described in recent studies [1], utilizes the ideal gas law and equations for air flow based on the De Saint-Venant and Vantzel formulas. The model accounts for factors such as chamber volume changes, air density, and pressure differentials. Simulation analysis, often performed using software like MATLAB, is crucial for validating the model and predicting system performance. The model’s accuracy is dependent on isothermal conditions, and discrepancies may occur in non-isothermal environments.

Key Findings and Performance Characteristics

Studies indicate that the amplitude of self-oscillations in these vibroactuators is linearly proportional to the supplied air pressure. Increasing the air pressure can significantly increase oscillation amplitude. The system’s performance is also influenced by initial tightening and the diameter of air outlet holes. Increasing initial tightening can require higher supply pressures to initiate self-oscillations, while increasing the diameter of the air outlet holes impacts angular velocity.

Future Trends and Research Directions

Future research will likely focus on refining mathematical models, conducting more extensive experimental validation, and exploring advanced control strategies. Further investigation into the effects of non-isothermal conditions and the development of more robust and adaptable control algorithms are also crucial. The integration of advanced manufacturing techniques for high-dose inhalable powders [2] and continuous powder delivery systems with vibration and pneumatic pressure assistance for laser-based additive manufacturing [3] will also drive innovation in this field.
