NASA’s Ultra-Fast Pressure Mapping System Revolutionizes Flight Technology Testing
Table of Contents
NASA is dramatically changing how it tests and develops new flight technology with its innovative Ultra-fast Pressure-Sensitive Paint (uPSP) system. This breakthrough allows for instantaneous, highly detailed visualization of airflow over aircraft models in wind tunnels, providing engineers with unprecedented feedback and accelerating the design process. By converting wind tunnel data into real-time visualisations, NASA aims to improve the accuracy of simulations and ultimately build safer, more efficient aircraft.
The Challenge of Accurate Flight Simulation
Accurate simulation software is crucial for modern aerospace engineering. However, the reliability of these simulations hinges on their ability to accurately reflect real-world physics. As Dr. Lara Lash, an aerospace engineer at NASA Ames Research Center, explains, “One of the challenges in making accurate simulation software packages – let alone accurate results – is being able to have something based in reality, based in real physics, to compare it to. The better [the] data we can collect in a wind tunnel habitat, that means the better the simulations are so we can trust the results even more.” uPSP directly addresses this challenge by providing a wealth of high-fidelity data for validation.
Introducing uPSP: A New Era of wind Tunnel Testing

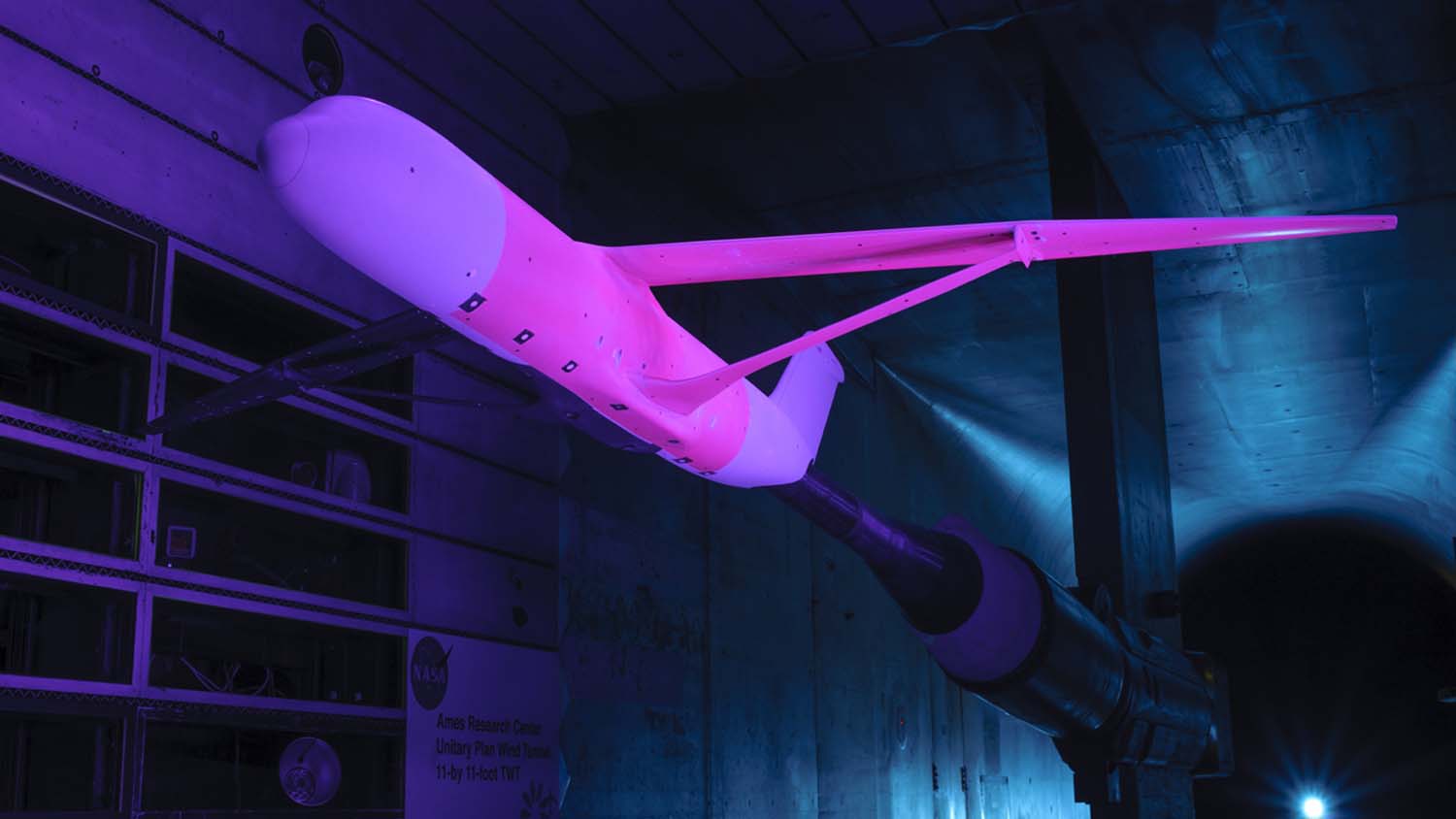

Developed at NASA Ames Research Centre, uPSP combines advancements in high-speed cameras, powerful energy sources, and responsive pressure-sensitive paint. Unlike traditional methods that rely on a limited number of pressure sensors (transducers), uPSP creates a dense grid of measurement points across the surface of a wind tunnel model.
Here’s how it works:
* pressure-Sensitive Paint: A specialized paint is applied to the model’s surface. This paint changes its luminescence in response to pressure variations.
* High-Speed Imaging: High-speed cameras capture images of the model as air flows over it.
* Real-Time Analysis: Sophisticated software analyzes the changes in luminescence, translating them into precise pressure measurements.
* Time-Resolved Data: The system captures these measurements over time, revealing how pressure fluctuations evolve – crucial for understanding unsteady airflow phenomena.
Benefits of the uPSP system
The uPSP system offers several significant advantages over traditional wind tunnel testing methods:
* Reduced Time & Cost: uPSP can be applied quickly using a spray gun, making data collection faster and more efficient.This substantially reduces the time between data gathering and analysis.Furthermore, it minimizes the need for numerous individual transducers, leading to significant cost savings.
* Increased Data Density: The system provides measurements from a dense grid of points, offering a far more complete understanding of airflow patterns than traditional methods.
* Versatility: If a model can be painted, viewed by a camera, and illuminated, uPSP data can be collected. This broad applicability makes it suitable for a wide range of testing scenarios.
* Improved Simulation Accuracy: The high-fidelity data generated by uPSP allows engineers to refine and validate their simulation models, leading to more accurate predictions of aircraft performance.
Applications and Future Outlook
the uPSP system has broad applications across the aerospace industry, including:
* Aerodynamic Design: Optimizing wing shapes and control surfaces for improved lift and reduced drag.
* High-Speed Flight Research: Understanding the complex airflow phenomena associated with supersonic and hypersonic flight.
* Rotorcraft Development: Improving the performance and stability of helicopters and other rotary-wing aircraft.
* Spacecraft Re-entry: Analyzing the thermal and aerodynamic stresses experienced during spacecraft re-entry.
NASA continues to refine and expand the capabilities of the uPSP system. Future developments may include integrating the technology with advanced data analytics and machine learning algorithms to further accelerate the design process and unlock new insights into the complexities of flight.
Key Takeaways:
* NASA’s uPSP system provides real-time, high-resolution pressure mapping during wind tunnel testing.
* It considerably reduces testing time and costs compared to traditional methods.
* The system improves the accuracy of flight simulations by providing a wealth of real-world data.
* uPSP has diverse applications across the aerospace industry, from commercial aircraft design to space exploration.
sources:
* NASA – New Paint Reveals Secrets of Flight
