Evanescent Scattering Microscopy: A New Window into Biomolecular Analysis

Evanescent scattering microscopy (ESM) is rapidly emerging as a powerful, label-free optical imaging technology poised to revolutionize biomolecular analysis. By utilizing evanescent fields and interferometric light scattering, ESM allows for the detection and characterization of single biomolecules in real-time, circumventing the limitations of traditional fluorescence-based methods. This advancement is particularly significant for applications requiring high sensitivity and minimal disruption of native molecular behavior.

Understanding Evanescent Fields

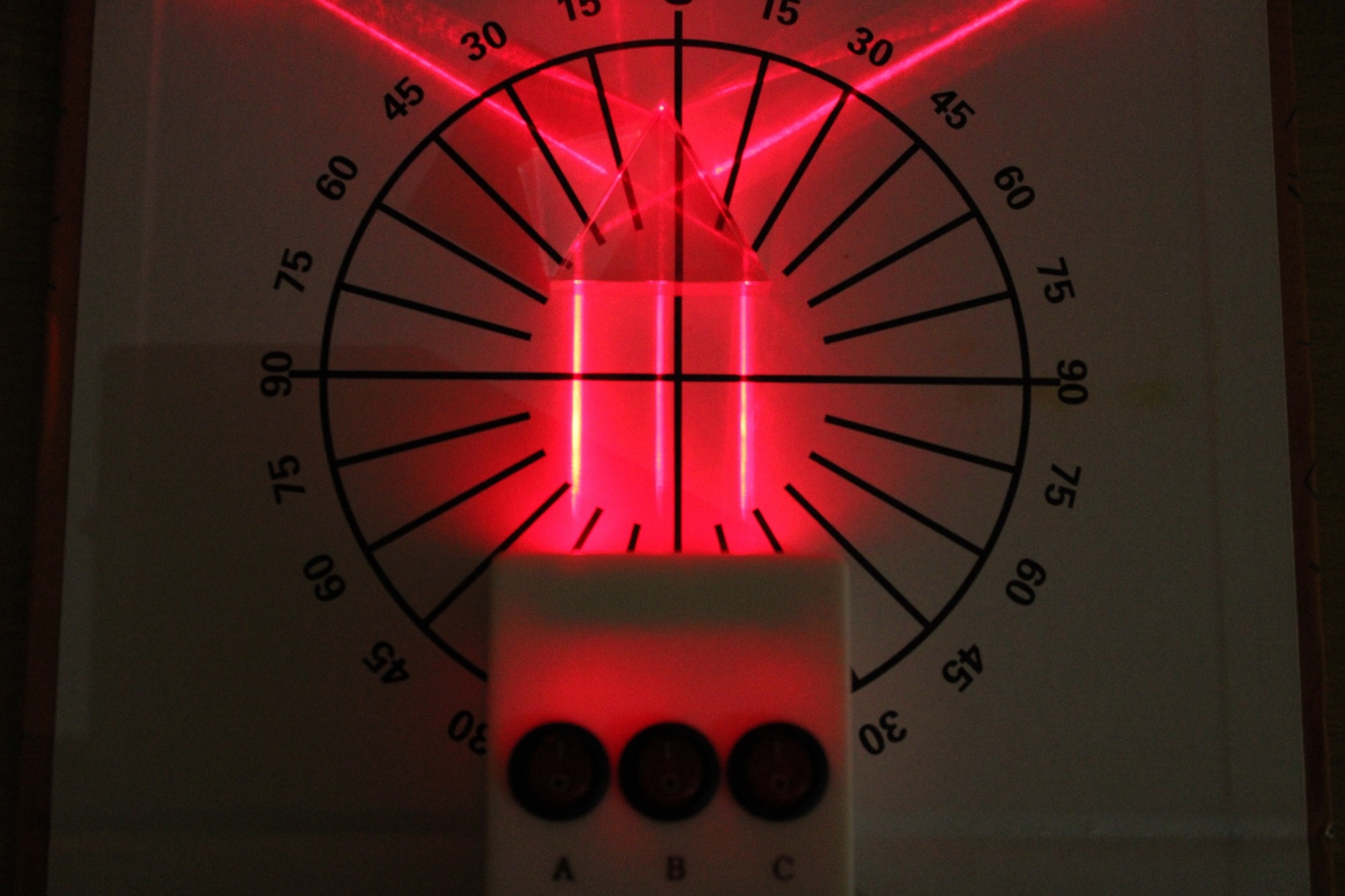

The foundation of ESM lies in the principle of total internal reflection (TIR) and the resulting evanescent field. When light travels from a medium of high refractive index (like glass) to one of lower refractive index (like water), it can undergo TIR at a specific angle of incidence, bouncing back instead of passing through. However, electromagnetic boundary conditions dictate the formation of an evanescent field – a non-propagating electromagnetic wave – in the lower-index medium.¹ This field decays exponentially with distance from the interface, typically penetrating only tens to hundreds of nanometers. This limited penetration depth confines the illumination to the immediate surface, minimizing background noise and enabling high-resolution imaging.

How Evanescent Scattering Microscopy Works

Current ESM systems typically employ a laser directed through a high-numerical-aperture oil-immersion objective. The laser wavelength is often chosen in the visible spectrum (frequently blue, around 450 nm) to enhance scattering contrast, though ESM can be implemented across multiple wavelengths.¹ The laser is incident at an angle slightly above the critical angle (approximately 65° for a glass-water interface) to excite the evanescent wave. When nanoscale objects adsorb to the surface, they scatter the incident light, enabling non-invasive imaging.¹

ESM implementations prioritize collecting scattered photons from both the analyte and the substrate, avoiding camera saturation and improving single-molecule detectability. Image contrast is generated through interference between light scattered by the target molecule and the inherent roughness of the substrate. Recent advancements allow for dynamic measurement of a molecule’s size and charge by tethering proteins to a surface and applying an alternating electric field.⁵ For minor analytes, the interferometric signal scaling improves detectability as size decreases.⁶

ESM vs. Other Imaging Techniques

While ESM shares principles with other advanced optical techniques like Total Internal Reflection Fluorescence (TIRF), interferometric Scattering (iSCAT) microscopy and Plasmonic Scattering Microscopy (PSM), key differences exist. TIRF requires fluorescent labels, which can alter molecular behavior and suffer from photobleaching.⁸ iSCAT relies on a strong reference beam, potentially limiting performance due to detector dynamic range and shot noise.⁸ ESM mitigates these limitations by using the substrate’s scattered field as a reference and preferentially collecting scattered light, enabling higher sensitivity on simple substrates.¹

Biological and Biophysical Applications

ESM’s ability to observe and measure label-free biomolecules in real-time is driving advancements in various fields. Applications include:

• Antibody-Antigen Binding Kinetics: Tracking the arrival and departure of individual proteins at binding sites with high spatial precision.¹
• Molecular Heterogeneity: Revealing variations in interaction behaviors among nominally similar proteins.¹
• Biomarker Detection: Ultra-sensitive detection of biomarkers, such as amyloid-β in saliva for Alzheimer’s disease research.⁹
• DNA Conformation Changes: Analyzing changes in DNA structure.⁶

Current Limitations and Future Directions

Despite its advantages, ESM faces challenges. The scattering signal diminishes as target molecules decrease in size, requiring careful background suppression and stable optics. Mechanical drift and spatial topologies can distort quantitative interpretation. The limited penetration depth of the evanescent field restricts imaging to the substrate interface.¹

Future developments focus on integrating ESM with artificial intelligence (AI) and machine learning (ML) to streamline background subtraction and drift compensation.⁸ Researchers are as well exploring miniaturized, lab-on-a-chip photonic architectures to create scalable diagnostic tools.⁴ Waveguide-based implementations with integrated fluid handling are expanding ESM capabilities toward larger fields of view and standardized assays.⁴

Key Takeaways

• ESM is a label-free optical imaging technique offering high sensitivity and minimal disruption to biomolecular systems.
• The technology relies on the principles of total internal reflection and evanescent fields.
• ESM overcomes limitations of traditional fluorescence-based methods, such as photobleaching and potential alteration of molecular behavior.
• Ongoing research aims to improve sensitivity, address technical challenges, and expand the range of applications.

ESM represents a significant step forward in biomolecular analysis, offering a powerful tool for researchers seeking to understand the intricate workings of life at the single-molecule level. As the technology continues to evolve, it promises to unlock new insights into biological processes and accelerate the development of innovative diagnostic and therapeutic strategies.
